(I) Product Introduction

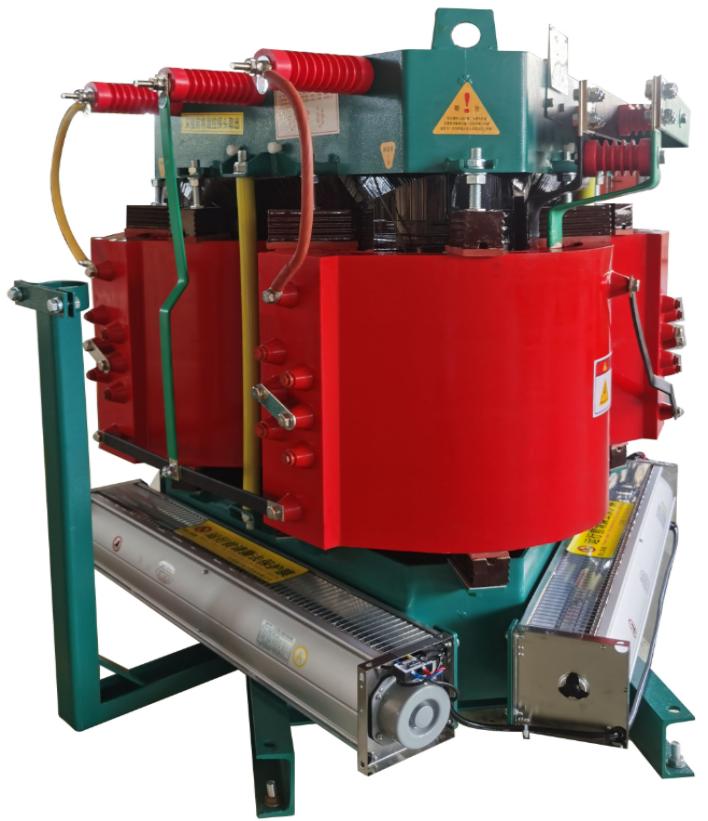

This product is an indoor, three-phase, double-winding, cast-resin encapsulated (SCB) high-efficiency energy-saving dry-type transformer, specifically the triangular three-dimensional encapsulated dry-type transformer of SCB11/12/13/14/18 series featuring high technical content and advanced performance. Compared with peer products, it boasts prominent strengths including symmetrical three-phase magnetic circuit, low noise, superior short-circuit withstand capability and favorable cost performance.

① Adopts triangular three-dimensional core to realize balanced three-phase no-load current, restrain triple harmonics and reduce operating noise.② Greatly reduced no-load loss and no-load current delivers remarkable energy-saving benefits.③ Main insulation is encapsulated with epoxy resin, enabling stable operation under complicated service conditions.④ Windings are integrally solidified via vacuum casting with low partial discharge, high mechanical strength and excellent short-circuit resistance.⑤ Thin resin insulation layer ensures outstanding heat dissipation and strong overload endurance.

(II) Technical Specifications

Executive Standards: GB/T 1094.11-2007, GB/T 1094.1-2013, GB 20052-2020, GB/T 1094.11-2022Voltage Class: 6–35kVCapacity Range: 30–3150kVARated Frequency: 50Hz/60HzConnection Symbol: Dyn11, Yyn0 or other customized connectionsVoltage Regulation Mode: Off-circuit tap-changing or on-load tap-changingInsulation Level: L175 AC35/AC5Permissible Temperature Rise: 100KPartial Discharge Level: ≤5pCCooling Type: AN / AF

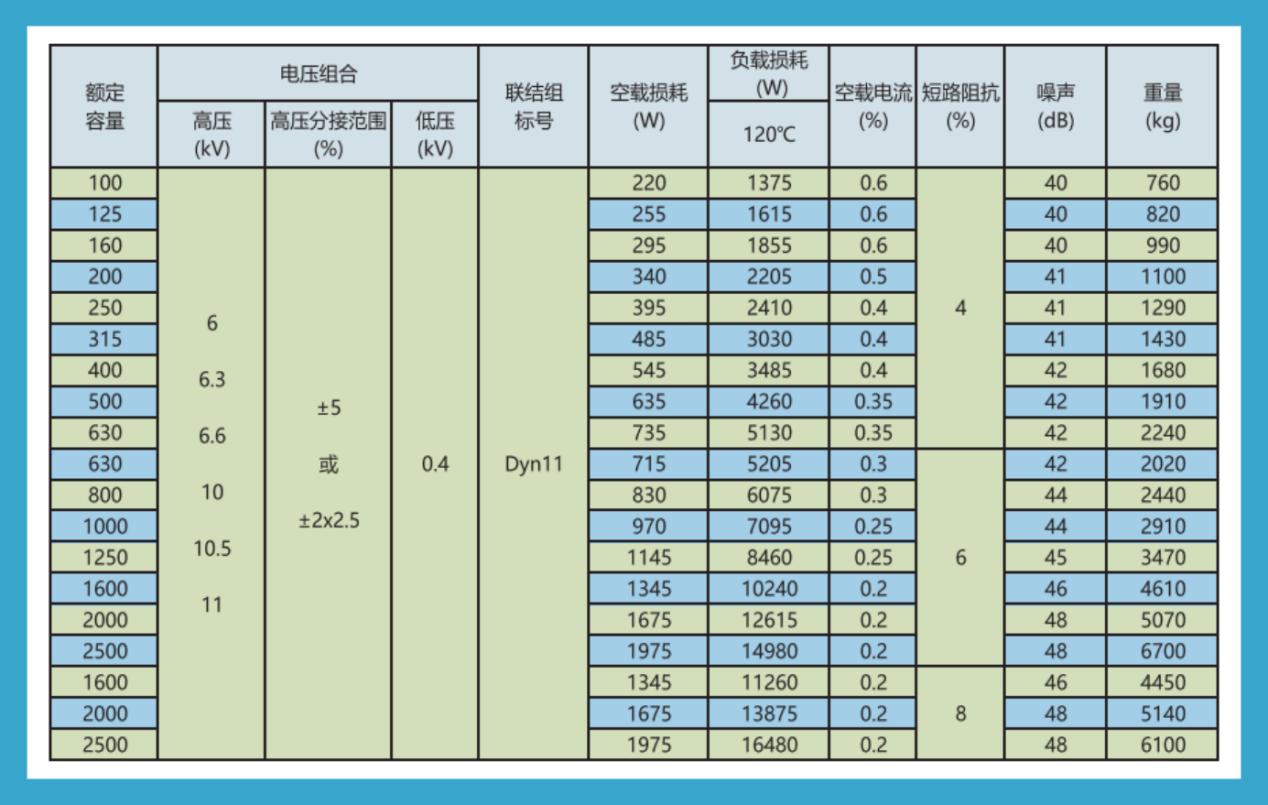

(III) Product Details
